Baler Features

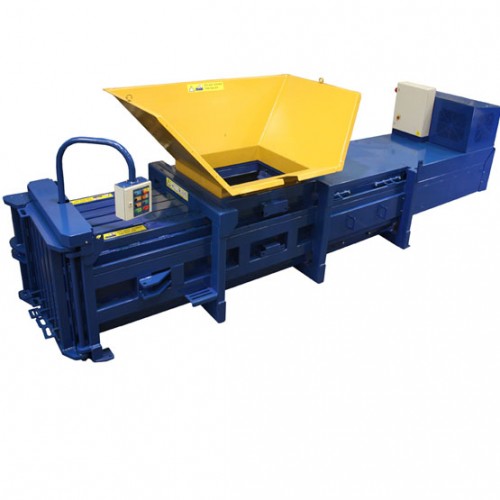

• A semi-Automatic Horizontal Baler with 50 Ton compaction force.

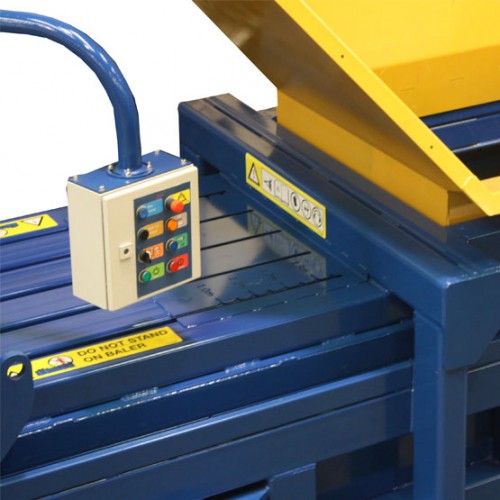

• PLC controls offer safe and easy operation.

• Removable top and bottom shear blades for easy maintenance and replacement.

• Lower photo eye for automatic stop/start when loading material into the baler.

• 6 oil filled cast nylon slide for plunger guides.

• Full stroke compaction.

• Automatic sheer jam correction.

• Hydraulic door latch with saftey interlock.

• Left & right door swing.


Optional Extras

• Feed conveyor for loading material.

• Bin lifter with saftey cage for loading material.

• Wire pushing system for faster and easier tying of bales.

BALER DIMENSIONS

Height: 2.320 m

Length: 7.000m

Depth: 1.782 m

Weight: 7.5T

Power Supply: 380-400V

BALE DIMENSIONS

Height: 0.750 m

Length: 1.500m

Depth: 1.100 m

Weight: up to 550kg

Cycle times: 45 seconds

Motor: 11kw 32 amp

Pressing force 50 Ton
