Useful cut:      1000-1300 mm

Diamond blade diameter (not included):       650 mm

Blade bore size:          25,4 mm

Motor power (standard):        3,6 kW = 5HP  3phase

Motor rotation speed: 1400 rpm  50Hz – 1700rpm 60Hz

Standard voltage/ frequency: 3ph. 400V-50 Hz

TOOLS: diamond blade for bricks (poroton type) Ø 650mm diameter, 25.4mm bore (not included) USEFUL CUT: 1000 - 1300 - 1500 mm

MOTOR: 3-phase 4 poles 400V 50Hz 1400rpm - Power 4KW (5,5 HP)

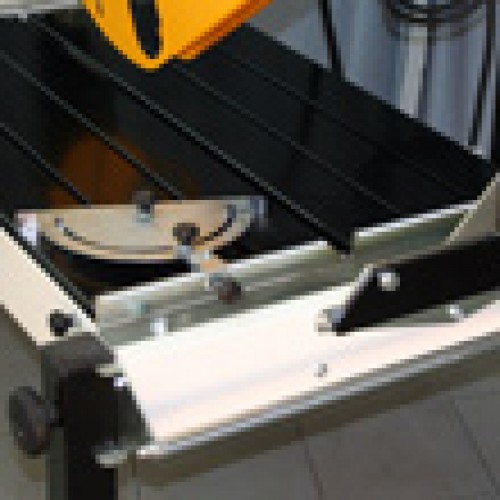

Worktable made of galvanized steel rails.

Water recycling system.

Manual head feed.

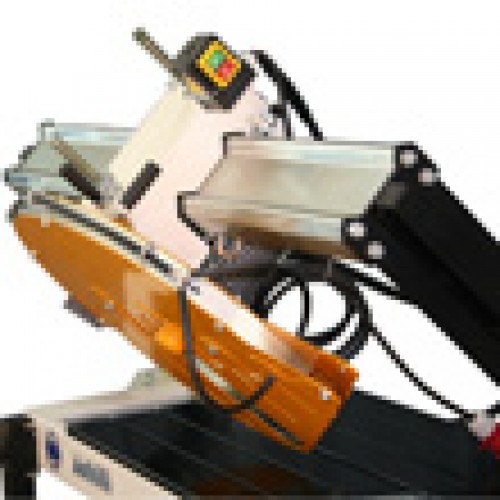

Bridgetiltforcuttingfrom90°to45°.

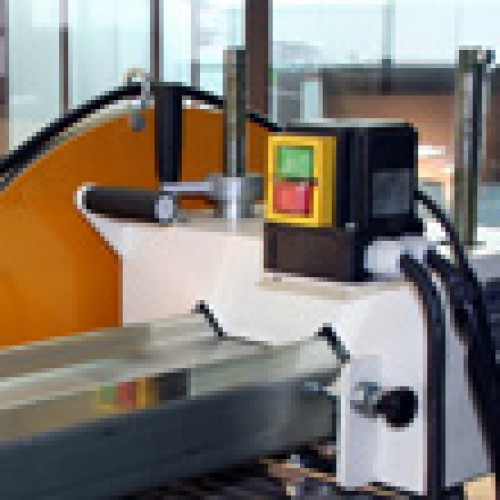

Manual adjustment of the cutting depth

Folding legs to facilitate transportation

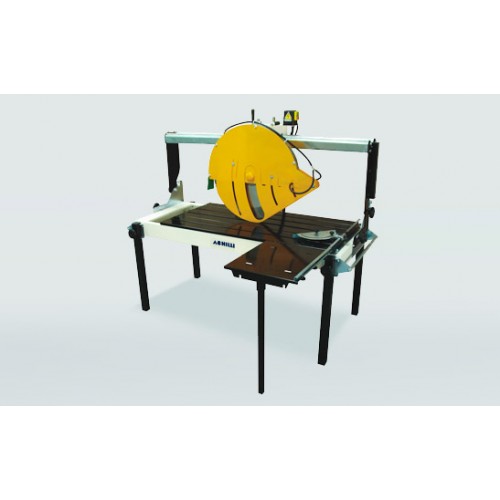

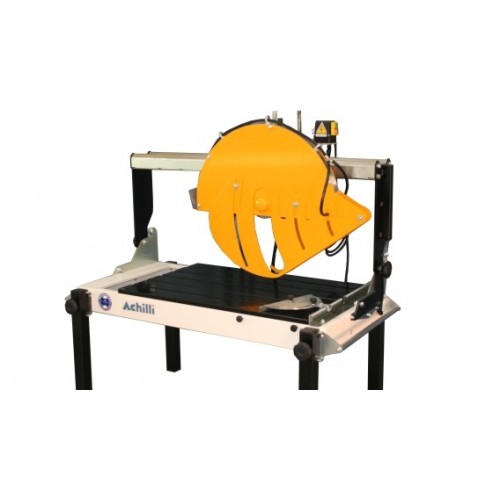

PORTABLE BENCH SAW MODEL ADR 100-CE

Useful cut: 1000 mm

Overall dimensions: 1470 x 755 x 1553 mm

Weight (empty): 154 Kg

PORTABLE BENCH SAW MODEL ADR 130-CE

Useful cut: 1300 mm

Overall dimensions: 1770 x 755 x 1553 mm

Weight (empty): 175 Kg

OPTIONAL

GALVANIZED AND PAINTED WATER TANK up to 1000mm

GALVANIZED AND PAINTED WATER TANK 1300-2000mm

SIDE EXTENSION TABLE WITH LEG 500x430mm
